Bridging large-scale civil project requirements and standard-compliant manufacturing. Delivering IS-certified structured-wall HDPE DWC piping systems and high-precision Shree Heat Shield AAC blocks built for a 50+ year service life.
Headquartered in the industrial hub of Bhilwara, Rajasthan, Sirius Infrasol stands at the forefront of India's infrastructure and construction landscape. We provide project developers, infrastructure conglomerates, and MEP contractors with reliable access to high-performance utility solutions without the rigid overheads of conventional manufacturing.
Collaborating with vetted facilities equipped with advanced extrusion lines and German Wehrhahn autoclaving technology, we enforce a strict "Defect-Zero" mandate. Every batch is subjected to rigorous multi-tier testing protocols complying with Bureau of Indian Standards (BIS) specifications—including IS 14930, IS 16098, and IS 2185 (Part 3).
Verified technical parameters from our official company profile. Manufactured to BIS benchmarks for power, telecom, sewerage, and green building projects.

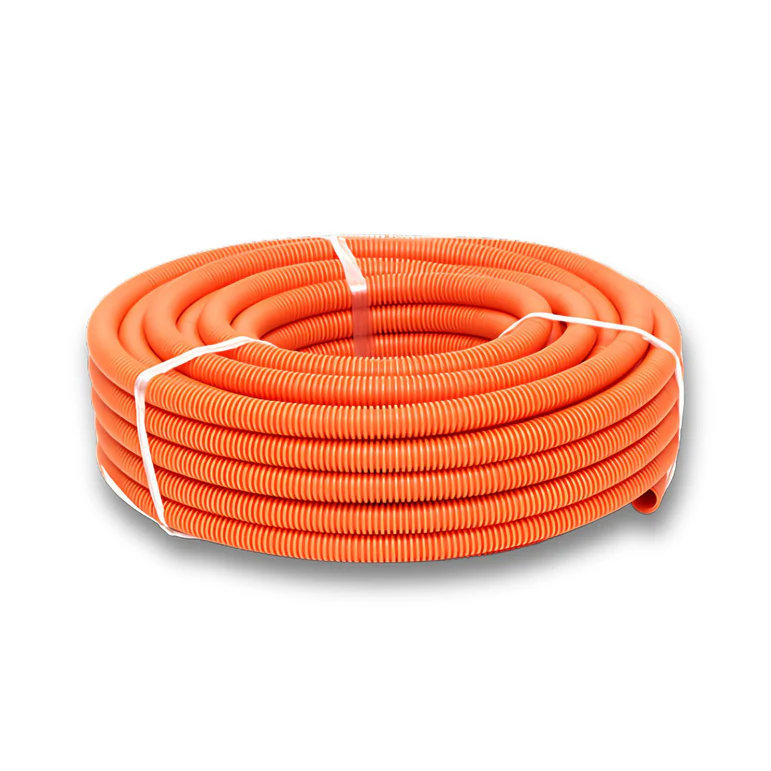

IS 16205: Part 24: 2017
High-strength cable ducts designed for power cable protection and optical fiber blown ducting. Features an anti-rodent, corrugated exterior for crush resistance and an ultra-smooth inner wall for effortless pulling.
| Size (OD/ID mm) | 40/32, 50/38, 63/50, 75/61, 90/76, 110/93, 120/103.5, 160/136, 200/175, 250/217 |
|---|---|
| Compliance | IS 16205 (Part 24: 2017) / IS 14930 |
| Supply Formats | Coils of 300m / 500m (40–63mm), 100m (75mm), or 6m Straight Lengths |
| Features | Anti-rodent, flame retardant, UV stabilized, pre-installed draw wire |
| Applications | Underground power transmission, Telecom OFC, Railway signaling, Smart cities |

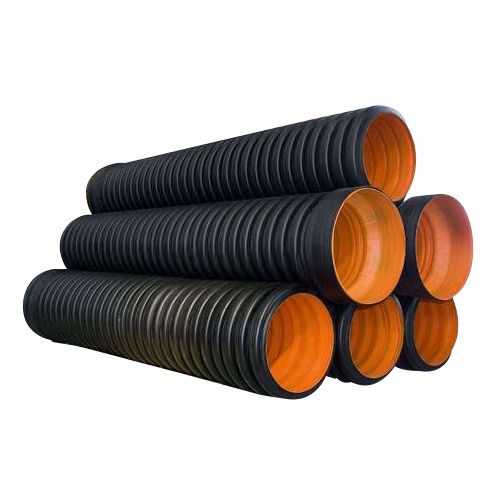

IS 16098: Part 2: 2013
Structured-wall non-pressure pipes built for municipal gravity sewerage, cross-drainage, and industrial effluents. Completely immune to hydrogen sulfide ($H_2S$) chemical attacks and microbial corrosion.
| Size (ID mm) | 75, 100, 125, 150, 200, 250, 300, 400, 500 mm |
|---|---|
| Compliance | IS 16098: Part 2: 2013 |
| Stiffness Class | SN4 (4 kN/m²) & SN8 (8 kN/m²) |
| Length & Joint | 6-Meter Straight Lengths with Integrated Coupler & EPDM Rubber Ring |
| Applications | Underground municipal sewerage, storm water, highway & road drainage |

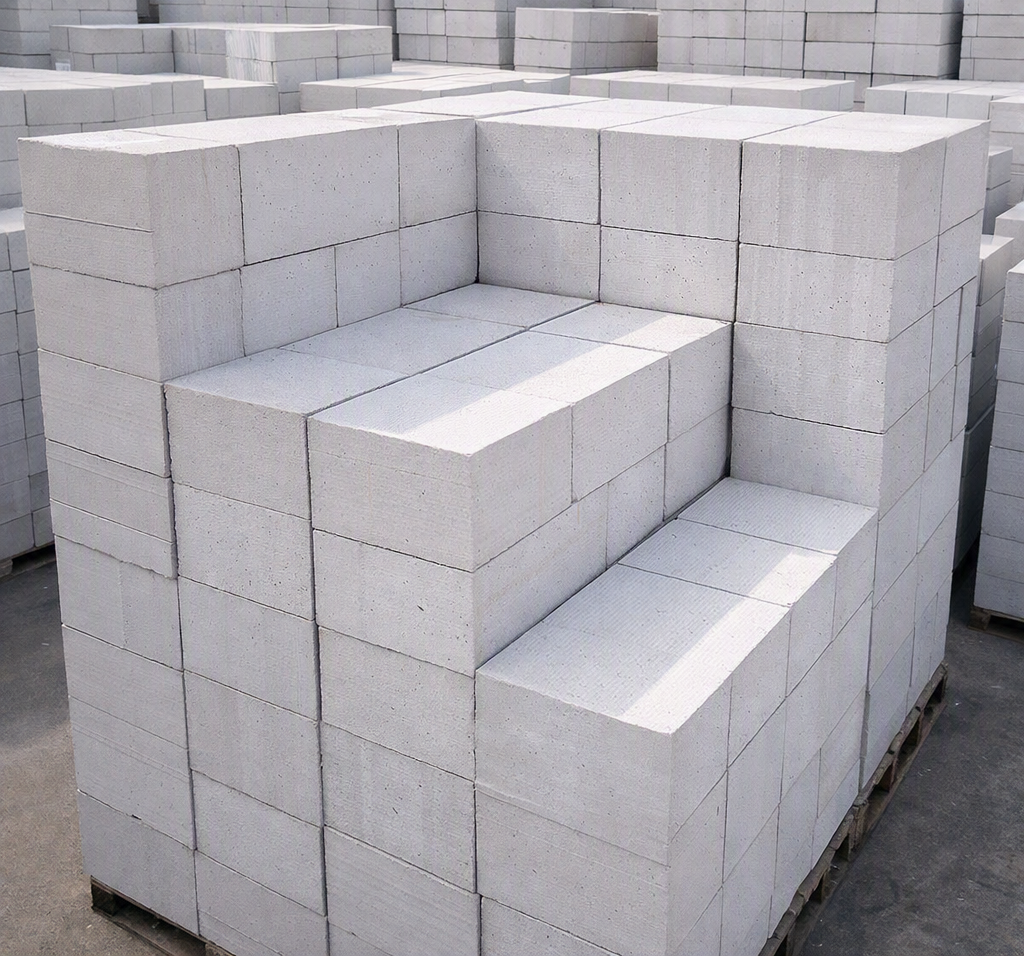

IS 2185 (Part 3)
Authorized channel partner for Shree Heat Shield precast masonry units produced using German Wehrhahn technology. Achieves up to 65% wall dead load reduction and ₹2,100 savings per 100 sq. ft. vs red clay bricks.
| Standard Sizes | 625 x 200 x 100 mm (4"), 150 mm (6"), 200 mm (8"), 225 mm |
|---|---|
| Compressive Strength | Avg. 4.5 N/mm² (Exceeds BIS minimum of 4.0 N/mm²) |
| Oven-Dry Density | 580 – 610 kg/m³ (BIS Spec: 551–650 kg/m³) |
| Thermal & Fire | k-Value: 0.21–0.24 W/m·K | 2 to 6 Hours Fire Resistance (1600°C) |
| Acoustic Rating | 40–45 dB sound dampening (for 200mm wall) |
At Sirius Infrasol, our philosophy is built on the belief that robust infrastructure is the backbone of a developing nation, and delivering it requires far more than just a commercial transaction—it demands a reliable engineering partnership.
We combine commercial agility with the accountability of seasoned site engineers, ensuring every meter of DWC conduit and every cubic meter of AAC block functions as a certified asset built for decades of zero-maintenance operation.
Multi-stage quality checks, batch testing, and third-party laboratory verification for structural density and ring stiffness.
100% recyclable polymeric pipes and low-carbon AAC walling contributing directly to LEED, IGBC, and GRIHA certifications.
End-to-end assistance from hydraulic product selection to on-site jointing, duct routing, and masonry execution guidance.
Certified advantages of our structured DWC conduits and precast AAC masonry units.
Fill out the form below for fast B2B pricing, technical compliance sheets, or bulk project dispatches.
